Hardie Gravis Deflection Track 3000mm

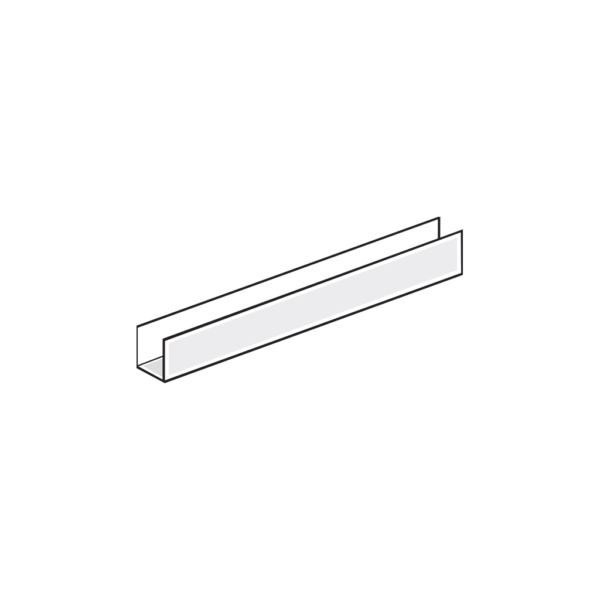

The Hardie Gravis Deflection Track (SKU: 700024) is an aluminium perimeter framing component designed to accommodate vertical building movement and structural deflection at the head of wall installations within the James Hardie Gravis Panel cladding system. Supplied in a 3000mm length, it is installed at the top of each panel run to allow controlled movement without transferring load to the panels or compromising the integrity of the cladding system. Its aluminium construction ensures corrosion resistance and long service life in exterior conditions.

Suitable For

• Head-of-wall perimeter framing in Hardie Gravis Panel installations
• Managing thermal expansion, live loads and structural settlement
• Steel and timber top hat framing substrates
• Residential and commercial façade cladding projects

Key Features

• Accommodates vertical building movement without transferring load to panels
• Purpose-engineered aluminium construction for corrosion resistance and long service life
• Supplied in 3000mm lengths to suit standard wall heights with minimal joins
• Maintains a clean, flush façade appearance once installed
• Manages deflection caused by thermal expansion, live loads and structural settlement
• Compatible with both steel and timber Hardie Gravis framing substrates

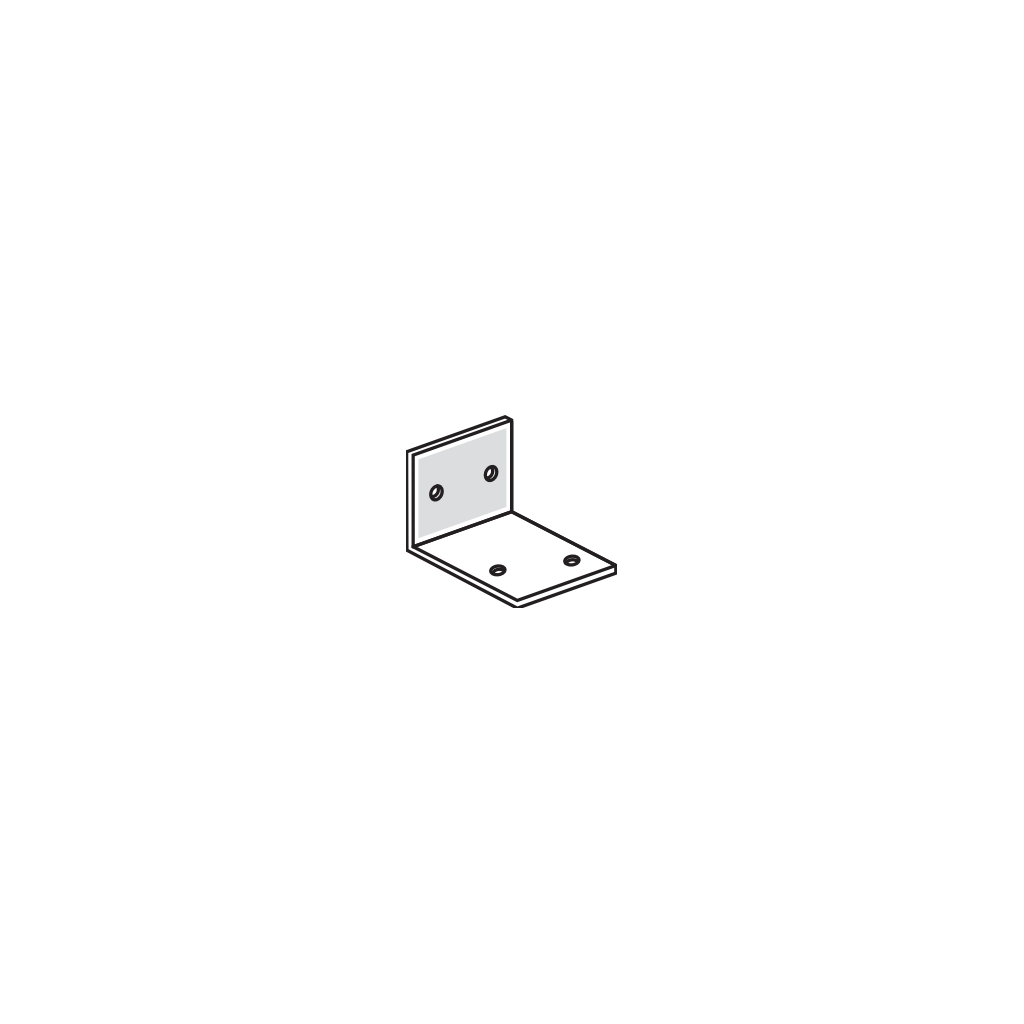

• Pairs with Hardie Gravis Top Hat Sections, Aluminium Angle Brackets and Direct Fix Clips
